Residual Diagnostics

Use residual diagnostics to identify bias, trends, and model inadequacy using ggPMX and nlmixr2.
Tip

Big picture: Residual diagnostics evaluate whether the residual assumptions introduced earlier remain reasonable after fitting.

Learning Objectives

By the end of this lesson, you will be able to:

  • Distinguish common residual quantities.
  • Interpret residual diagnostic plots.
  • Generate residual diagnostics using ggPMX.
  • Recognize signs of bias.
  • Explain why residuals are central to model evaluation.

Key Ideas

  • Residuals measure disagreement.
  • Random residuals are preferred.
  • Patterns often suggest model issues.
  • Diagnostics focus on trends rather than isolated observations.

Setup

library(tidyverse)
library(nlmixr2)
library(nlmixr2data)
library(ggPMX)

data("theo_sd", package = "nlmixr2data")

Fit the model.

one_comp_model <- function(){

    ini({

        tka <- log(1)
        tcl <- log(3)
        tv <- log(30)

        eta.ka ~ 0.1
        eta.cl ~ 0.1
        eta.v ~ 0.1

        add.err <- 0.1

    })

    model({

        ka <- exp(tka + eta.ka)
        cl <- exp(tcl + eta.cl)
        v <- exp(tv + eta.v)

        linCmt() ~ add(add.err)

    })

}

fit <-
nlmixr2(
  one_comp_model,
  theo_sd,
  est = "focei",
  control = list(
    print = 0
  )
)

fit_tbl <-
fit %>%
as_tibble()

ctr <- pmx_nlmixr(fit)

Why Residual Diagnostics Matter

Residual diagnostics evaluate:

Observed

↓

Prediction

↓

Residual

↓

Residual Assumptions

Residuals should ideally behave randomly.

Residual diagnostics evaluate whether assumptions about residual variability remain reasonable.

Earlier we introduced:

  • additive residual variability
  • proportional residual variability
  • combined residual variability

Residual diagnostics help evaluate those assumptions.

Patterns may suggest:

  • structural problems
  • incorrect residual assumptions
  • unexplained variability
  • time-dependent bias

Worked Example 1: Inspect Residual Variables

Inspect residual quantities stored in the fit.

fit_tbl %>%
  select(
    DV,
    PRED,
    RES,
    WRES,
    IRES,
    IWRES,
    CWRES
  ) %>%
  head()
# A tibble: 6 × 7
     DV  PRED    RES   WRES   IRES  IWRES  CWRES
  <dbl> <dbl>  <dbl>  <dbl>  <dbl>  <dbl>  <dbl>
1  0.74  0     0.74   1.07   0.74   1.07   1.07
2  2.84  3.26 -0.422 -0.225 -1.01  -1.45  -0.177
3  6.57  5.83  0.740  0.297 -0.215 -0.310  0.287
4 10.5   7.87  2.63   1.23   1.46   2.10   1.17
5  9.66  8.51  1.15   0.826 -0.125 -0.180  0.760
6  8.58  7.62  0.955  0.805 -0.514 -0.741  0.723

Interpretation:

Variable Meaning
RES observed − population prediction
WRES weighted residual
IRES observed − individual prediction
IWRES individual weighted residual
CWRES conditional weighted residual

We will focus primarily on CWRES.

Residual Types in Population Modeling

Residual quantities differ in how disagreement is scaled.

Simple residual:

\[ RES = DV - PRED \]

Interpretation:

Observed − Population Prediction

Weighted residual:

\[ WRES = \frac{DV - PRED}{\text{Estimated Residual Variability}} \]

Interpretation:

Disagreement
adjusted for expected noise

Large positive values:

Observed much higher than expected

Large negative values:

Observed much lower than expected

Individual weighted residual:

\[ IWRES = \frac{DV - IPRED}{\text{Estimated Residual Variability}} \]

Interpretation:

Disagreement relative to the individual prediction

Conditional weighted residual:

\[ CWRES \approx \frac{DV - E(DV)}{SD(DV)} \]

Interpretation:

Observed disagreement
adjusted using the fitted population model

CWRES accounts for:

  • fixed effects
  • variability
  • residual error

Because of this, CWRES is commonly preferred for diagnostics.

Question:

Why not use simple residuals?

Because residual magnitude often changes with:

  • concentration
  • variability
  • uncertainty

CWRES standardizes disagreement and allows more meaningful comparison across observations.

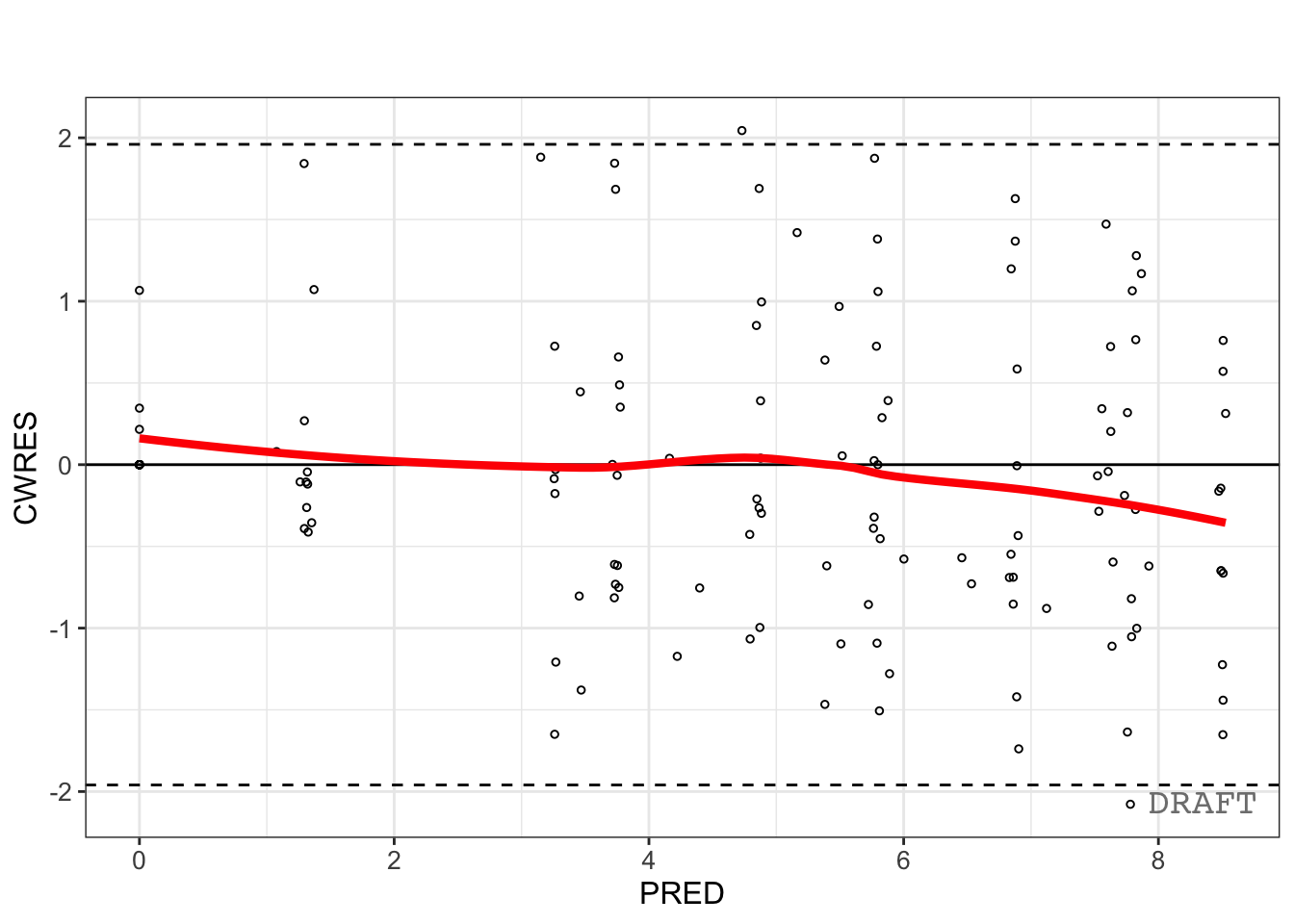

Worked Example 2: CWRES vs Population Prediction

pmx_plot_cwres_pred(ctr)

Interpretation:

Look for:

  • residuals centered around zero
  • absence of obvious trends
  • relatively stable spread

Possible concerns:

  • curvature
  • increasing spread
  • clusters

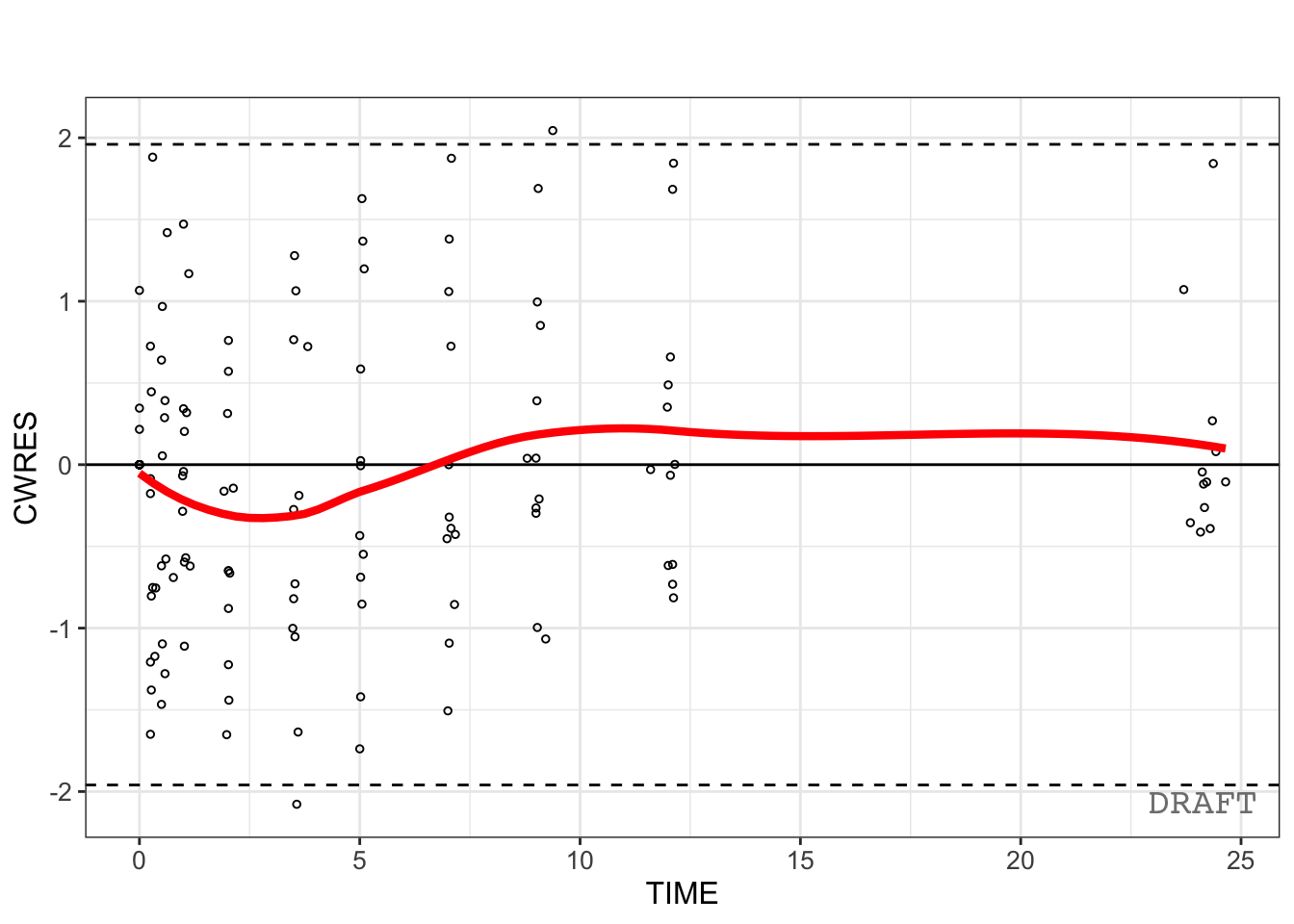

Worked Example 3: CWRES vs Time

pmx_plot_cwres_time(ctr)

Interpretation:

Look for:

  • drift over time
  • changing variability
  • delayed bias

Residual patterns over time may indicate model misspecification.

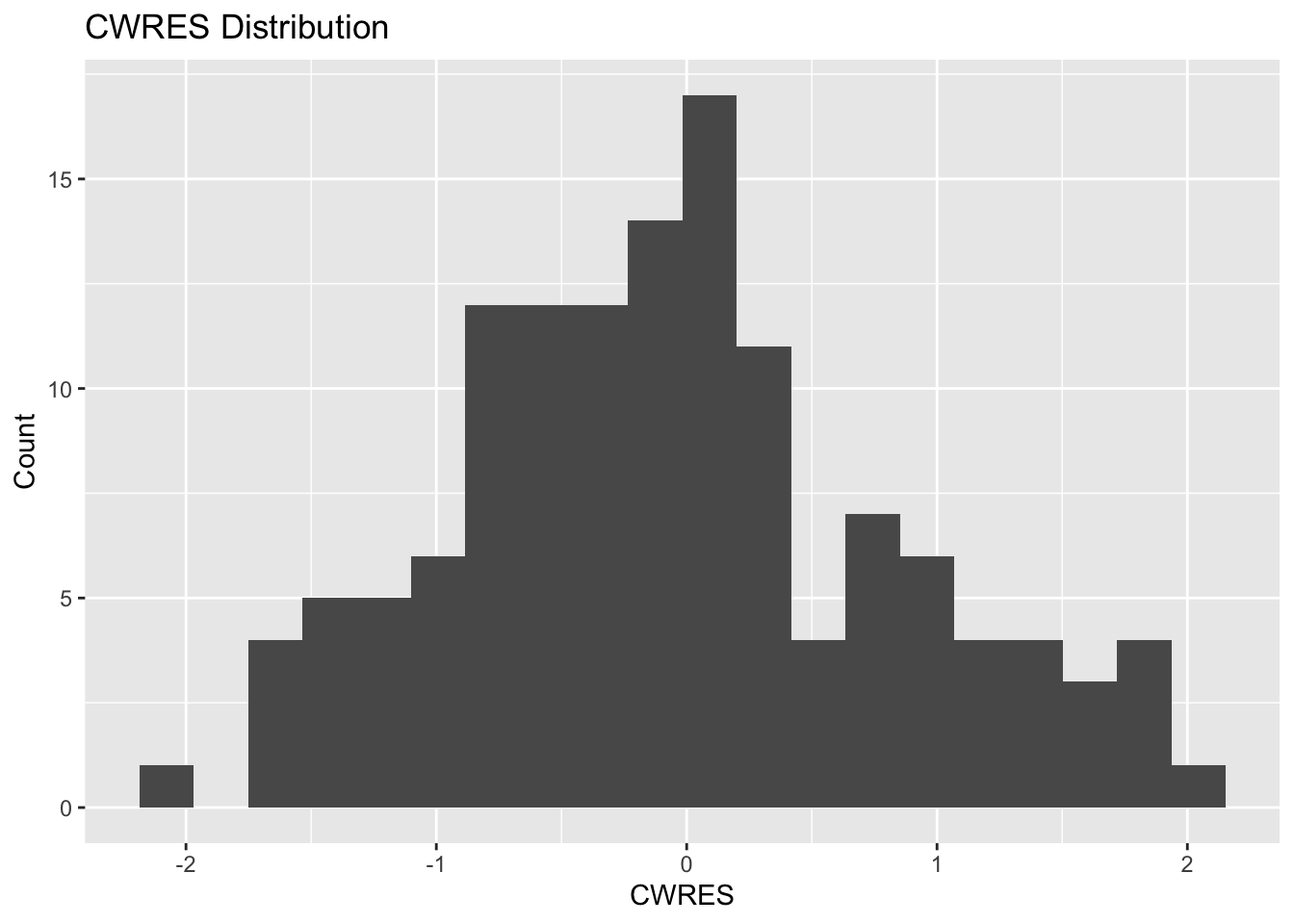

Worked Example 4: Inspect the Residual Distribution

Residuals should not only appear random across prediction and time.

Their distribution also matters.

Build a residual histogram manually.

ggplot(
  fit_tbl,
  aes(CWRES)
) +
geom_histogram(
  bins = 20
) +
labs(
  title = "CWRES Distribution",
  x = "CWRES",
  y = "Count"
)

Interpretation:

Look for:

  • approximate centering near zero
  • reasonable symmetry
  • absence of extreme tails

Question:

Do residuals behave approximately as expected?

Residual distributions support residual assumptions.

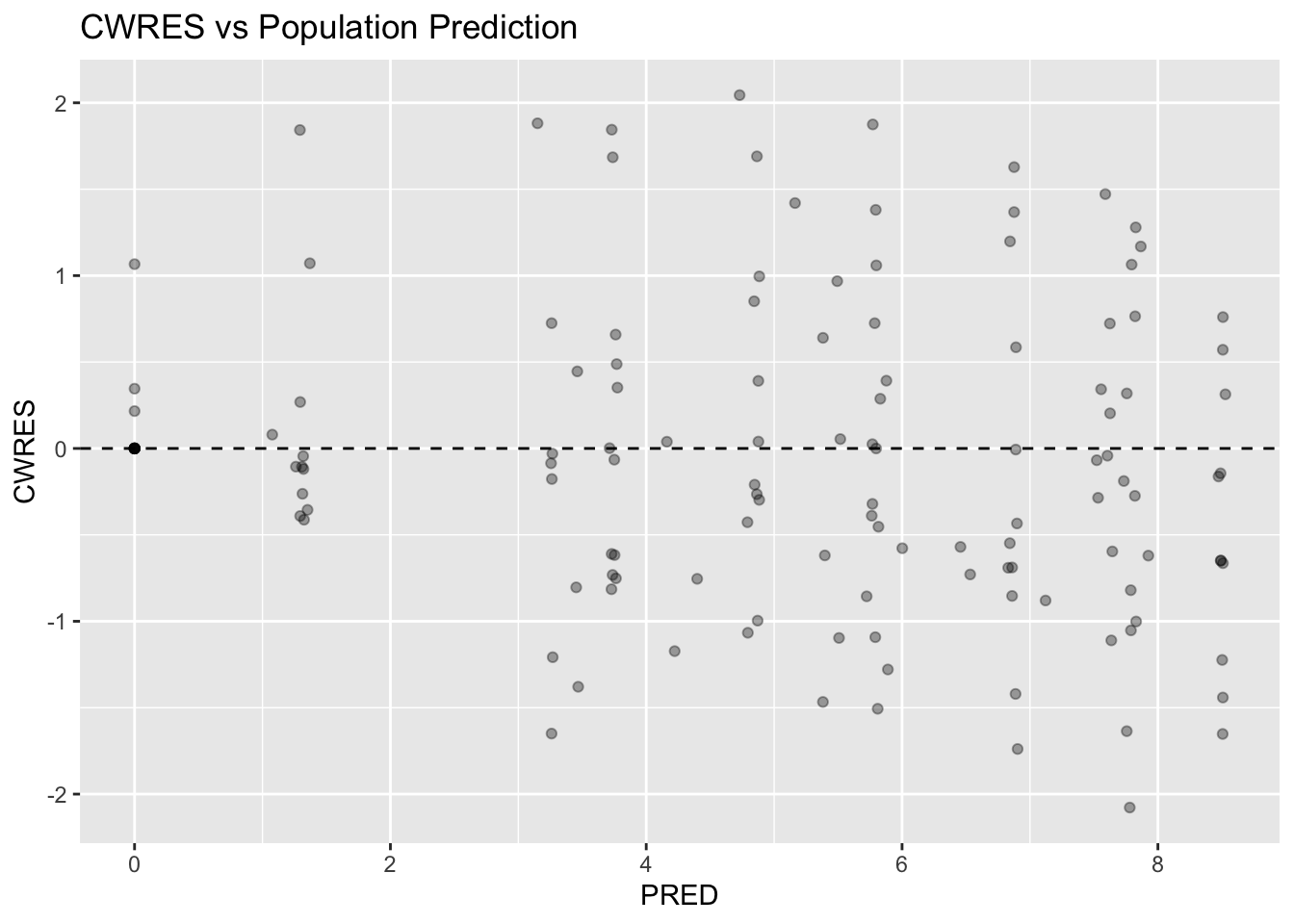

Worked Example 5: Build One Residual Plot Manually

Although ggPMX provides standardized diagnostics, understanding the underlying variables helps interpretation.

ggplot(
  fit_tbl,
  aes(PRED, CWRES)
) +
geom_point(
  alpha = 0.35
) +
geom_hline(
  yintercept = 0,
  linetype = 2
) +
labs(
  title = "CWRES vs Population Prediction",
  x = "PRED",
  y = "CWRES"
)

Manual plots and standardized plots should tell a consistent story.

Worked Example 6: Residual Interpretation Framework

Review residual diagnostics in order:

Centering

↓

Trend

↓

Spread

↓

Distribution

↓

Outliers

↓

Model Issue?

Ask:

  • residual assumption problem?
  • structural problem?
  • missing covariates?
  • unexplained variability?

Avoid conclusions from isolated points.

Strategies

  • inspect multiple diagnostics
  • compare residual definitions
  • focus on overall behavior

Common Mistakes

  • expecting residuals to equal zero
  • diagnosing from one point
  • confusing variability with bias

Practice Problems

  1. What does CWRES represent?

  2. Why are residual plots centered around zero?

  3. Generate:

pmx_plot_cwres_pred(
  ctr
)

Describe one observation.

  1. Generate:
pmx_plot_cwres_hist(ctr)

Describe:

  • centering
  • spread
  • symmetry
  1. Why are residual diagnostics useful after GOF plots?

Problem 1

CWRES is:

Observed − Expected
scaled by model uncertainty

It standardizes disagreement.

Problem 2

Residual plots are centered around zero because:

Positive Errors

↓

Negative Errors

should balance.

Problem 3

Generate:

pmx_plot_cwres_pred(ctr)

Inspect:

  • centering
  • spread
  • trends

Ask:

Random
or
Structured?

Problem 4

Generate:

pmx_plot_cwres_time(
  ctr
)

Inspect:

  • drift
  • changing variability
  • delayed bias

Problem 5

Multiple diagnostics are needed because:

GOF

↓

Residuals

↓

VPC

each evaluates different model behavior.

Summary

  • residual diagnostics evaluate disagreement
  • residual diagnostics evaluate residual assumptions
  • CWRES is commonly preferred
  • trends matter more than isolated observations
  • diagnostics should be interpreted collectively
  • Centered is better
  • Patterns > points
  • Inspect more than one diagnostic
