Reading the Fit Object

Explore the nlmixr2 fit object and understand the main components returned after estimation.
Tip

Big picture: Model fitting produces much more than parameter estimates. The fit object stores model structure, parameter estimates, uncertainty information, predictions, residuals, variability estimates, and metadata.

Learning Objectives

By the end of this lesson, you will be able to:

  • Understand what the fit object contains.
  • View the estimated model structure.
  • Read the printed fit summary.
  • Locate parameter estimates and uncertainty information.
  • Extract predictions and residual variables.
  • Recognize which outputs belong to estimation versus later diagnostics.

Key Ideas

  • Estimation returns a rich fit object.
  • fit and print(fit) display different useful views.
  • The fit object contains more than coefficients.
  • Model output should be read systematically.
  • Fit interpretation comes before diagnostics.

Setup

library(tidyverse)
library(nlmixr2)
library(nlmixr2data)

data("theo_sd", package = "nlmixr2data")

Fit the model.

one_comp_model <- function(){

  ini({

    tka <- log(1)
    tcl <- log(3)
    tv  <- log(30)

    eta.ka ~ 0.1
    eta.cl ~ 0.1
    eta.v  ~ 0.1

    add.err <- 0.1

  })

  model({

    ka <- exp(tka + eta.ka)
    cl <- exp(tcl + eta.cl)
    v  <- exp(tv + eta.v)

    linCmt() ~ add(add.err)

  })

}

fit <-
nlmixr2(
  one_comp_model,
  theo_sd,
  est = "focei",
  control = list(
    print = 0
  )
)

Why the Fit Object Matters

After estimation, the model becomes more than equations.

The fit object contains:

Model
+
Data
+
Estimated Parameters
+
Predictions
+
Residuals
+
Variability
+
Metadata

Understanding this structure helps us move from model fitting to model interpretation.

Worked Example 1: View the Estimated Model

Start by viewing the fitted model.

fit

\[\begin{align*} {ka} & = \exp\left({tka}+{eta.ka}\right) \\ {cl} & = \exp\left({tcl}+{eta.cl}\right) \\ {v} & = \exp\left({tv}+{eta.v}\right) \\ linCmt() & \sim add({add.err}) \end{align*}\]

This renders a useful model representation.

This view helps connect:

Structural Model
↓
Population Parameters
↓
Subject Variability
↓
Observation Model

Look for:

  • model equations
  • parameter names
  • variability terms
  • residual error structure

At this stage, focus on recognizing the model.

Detailed numerical interpretation comes next.

Worked Example 2: Print the Fit Summary

Print the complete fit summary.

print(fit)
── nlmixr² FOCEi (outer: nlminb) ──

          OBJF      AIC      BIC Log-likelihood Condition#(Cov) Condition#(Cor)
FOCEi 116.8039 373.4036 393.5832      -179.7018        68.64196        9.387133

── Time (sec $time): ──

           setup optimize covariance table    other
elapsed 0.001914 0.145002   0.145003 0.022 3.339081

── Population Parameters ($parFixed or $parFixedDf): ──

         Est.     SE %RSE Back-transformed(95%CI) BSV(CV%) Shrink(SD)%
tka     0.463  0.195 42.1       1.59 (1.08, 2.33)     70.5      1.86%
tcl      1.01 0.0751 7.42       2.75 (2.37, 3.19)     26.8      3.98%
tv       3.46 0.0436 1.26       31.8 (29.2, 34.6)     13.9      10.4%
add.err 0.694                               0.694

  Covariance Type ($covMethod): r,s
  No correlations in between subject variability (BSV) matrix
  Full BSV covariance ($omega) or correlation ($omegaR; diagonals=SDs)
  Distribution stats (mean/skewness/kurtosis/p-value) available in $shrink
  Information about run found ($runInfo):
   • gradient problems with initial estimate and covariance; see $scaleInfo
   • ETAs were reset to zero during optimization; (Can control by foceiControl(resetEtaP=.))
   • initial ETAs were nudged; (can control by foceiControl(etaNudge=., etaNudge2=))
  Censoring ($censInformation): No censoring
  Minimization message ($message):
    relative convergence (4)

── Fit Data (object is a modified tibble): ──
# A tibble: 132 × 22
  ID     TIME    DV  PRED    RES   WRES IPRED   IRES  IWRES CPRED   CRES  CWRES
  <fct> <dbl> <dbl> <dbl>  <dbl>  <dbl> <dbl>  <dbl>  <dbl> <dbl>  <dbl>  <dbl>
1 1      0     0.74  0     0.74   1.07   0     0.74   1.07   0     0.74   1.07
2 1      0.25  2.84  3.26 -0.422 -0.225  3.85 -1.01  -1.45   3.22 -0.378 -0.177
3 1      0.57  6.57  5.83  0.740  0.297  6.78 -0.215 -0.310  5.77  0.796  0.287
# ℹ 129 more rows
# ℹ 10 more variables: eta.ka <dbl>, eta.cl <dbl>, eta.v <dbl>, depot <dbl>,
#   central <dbl>, ka <dbl>, cl <dbl>, v <dbl>, tad <dbl>, dosenum <dbl>

The printed summary contains several sections.

Focus on these first.

Objective Function

Inspect:

OBJF

The objective function is the quantity minimized during estimation.

Conceptually:

Model Parameters

↓

Generate Predictions

↓

Compare to Observations

↓

Calculate Likelihood

↓

Convert to Objective Function

nlmixr2 estimates parameters by searching for values that improve agreement between observed and predicted data.

In general:

Higher Likelihood

↓

Lower Objective Function

Lower objective function values may suggest better agreement for the same dataset and model structure.

Do not compare objective function values across unrelated datasets or substantially different analyses.

Information Criteria

Inspect:

AIC
BIC

These balance:

Model Fit
↓
Model Complexity

Lower values may indicate a more efficient model.

These become more useful later when comparing candidate models.

Population Parameters

Inspect:

Est.
SE
%RSE
Back-transformed

Interpretation:

  • Est. → estimated value on the model scale
  • SE → standard error
  • %RSE → relative standard error
  • Back-transformed → estimate on the original PK scale

Variability

Inspect:

BSV(CV%)

This estimates subject-to-subject variability.

The next module explains variability models in more detail.

Shrinkage

Inspect:

Shrink(SD)%

Shrinkage gives information about how strongly individual estimates are informed by the data.

At this stage, do not apply strict thresholds.

Just recognize where shrinkage appears.

Convergence

Inspect:

fit$message

Example:

relative convergence (4)

Interpretation:

Convergence means optimization stopped successfully.

This does not guarantee:

  • biologically reasonable estimates
  • realistic variability
  • predictive performance

Those questions are addressed later in the course.

Worked Example 3: Explore the Object Structure

Inspect the fit object class.

class(fit)
[1] "nlmixr2FitData" "nlmixr2FitCore" "nlmixr2.focei"  "tbl_df"
[5] "tbl"            "data.frame"
attr(,".foceiEnv")

Explore available components.

names(fit)
 [1] "ID"      "TIME"    "DV"      "PRED"    "RES"     "WRES"    "IPRED"
 [8] "IRES"    "IWRES"   "CPRED"   "CRES"    "CWRES"   "eta.ka"  "eta.cl"
[15] "eta.v"   "depot"   "central" "ka"      "cl"      "v"       "tad"
[22] "dosenum"

This gives a quick overview of what is stored.

The goal is not to memorize every component.

The goal is to learn how to navigate the object.

Worked Example 4: Extract Population Parameters

Extract fixed effects.

coef(fit)$fixed %>%
  enframe(
    name = "parameter",
    value = "estimate"
  )
# A tibble: 4 × 2
  parameter estimate
  <chr>        <dbl>
1 tka          0.463
2 tcl          1.01
3 tv           3.46
4 add.err      0.694

These estimates are on the model scale.

Convert them to the original scale.

coef(fit)$fixed %>%
exp() %>%
enframe(
  name = "parameter",
  value = "estimate_original_scale"
)
# A tibble: 4 × 2
  parameter estimate_original_scale
  <chr>                       <dbl>
1 tka                          1.59
2 tcl                          2.75
3 tv                          31.8
4 add.err                      2.00

Interpretation:

  • tka → typical absorption
  • tcl → typical clearance
  • tv → typical volume

These values describe the typical subject.

Worked Example 5: Inspect Predictions and Residual Variables

Extract fitted output.

fit_tbl <-
fit %>%
as_tibble()

fit_tbl
# A tibble: 132 × 22
   ID     TIME    DV  PRED    RES   WRES IPRED    IRES   IWRES CPRED   CRES
   <fct> <dbl> <dbl> <dbl>  <dbl>  <dbl> <dbl>   <dbl>   <dbl> <dbl>  <dbl>
 1 1      0     0.74  0     0.74   1.07   0     0.74    1.07    0     0.74
 2 1      0.25  2.84  3.26 -0.422 -0.225  3.85 -1.01   -1.45    3.22 -0.378
 3 1      0.57  6.57  5.83  0.740  0.297  6.78 -0.215  -0.310   5.77  0.796
 4 1      1.12 10.5   7.87  2.63   1.23   9.04  1.46    2.10    7.83  2.67
 5 1      2.02  9.66  8.51  1.15   0.826  9.79 -0.125  -0.180   8.49  1.17
 6 1      3.82  8.58  7.62  0.955  0.805  9.09 -0.514  -0.741   7.62  0.957
 7 1      5.1   8.36  6.84  1.52   1.30   8.45 -0.0853 -0.123   6.84  1.52
 8 1      7.03  7.47  5.79  1.68   1.44   7.54 -0.0682 -0.0983  5.78  1.69
 9 1      9.05  6.89  4.87  2.02   1.70   6.69  0.198   0.286   4.83  2.06
10 1     12.1   5.94  3.73  2.21   1.84   5.58  0.356   0.514   3.64  2.30
# ℹ 122 more rows
# ℹ 11 more variables: CWRES <dbl>, eta.ka <dbl>, eta.cl <dbl>, eta.v <dbl>,
#   depot <dbl>, central <dbl>, ka <dbl>, cl <dbl>, v <dbl>, tad <dbl>,
#   dosenum <dbl>

View available variables.

names(fit_tbl)
 [1] "ID"      "TIME"    "DV"      "PRED"    "RES"     "WRES"    "IPRED"
 [8] "IRES"    "IWRES"   "CPRED"   "CRES"    "CWRES"   "eta.ka"  "eta.cl"
[15] "eta.v"   "depot"   "central" "ka"      "cl"      "v"       "tad"
[22] "dosenum"

Common variables include:

Variable Meaning
DV observed concentration
PRED prediction for the typical subject
IPRED prediction including individual effects
RES observed − population prediction
IRES observed − individual prediction
CWRES conditional weighted residual

These quantities become central for:

  • understanding model behavior
  • variability interpretation
  • later diagnostic evaluation

For now, recognize that the fit object stores them automatically.

Worked Example 6: Create a First Prediction Plot

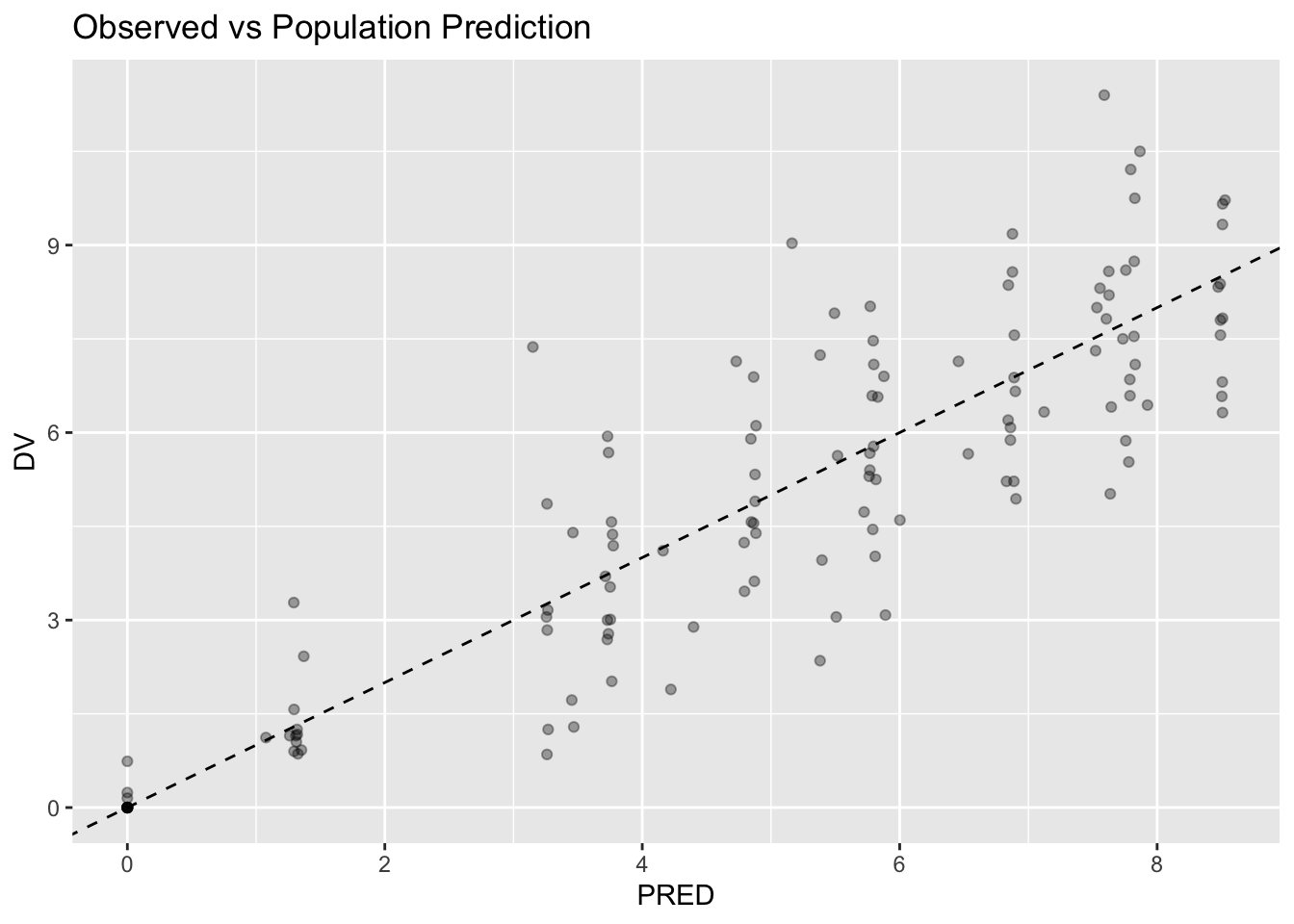

Create a simple observed versus population prediction plot.

ggplot(
  fit_tbl,
  aes(PRED, DV)
) +
geom_point(
  alpha = 0.35
) +
geom_abline(
  slope = 1,
  intercept = 0,
  linetype = 2
) +
labs(
  title = "Observed vs Population Prediction",
  x = "PRED",
  y = "DV"
)

Interpretation:

  • points closer to the line suggest stronger agreement
  • scatter is expected
  • formal diagnostics come later

This plot is only a preview.

Do not use it alone to judge model adequacy.

Reading Output Systematically

Suggested order:

Model Representation
↓
Fit Summary
↓
Convergence
↓
Parameter Estimates
↓
Variability
↓
Predictions
↓
Diagnostics

Avoid reading everything simultaneously.

Strategies

  • Start with the model structure.
  • Read the printed summary next.
  • Extract specific quantities directly.
  • Interpret estimates on the correct scale.
  • Save full diagnostic interpretation for the diagnostics module.

Common Mistakes

  • Treating output as final truth.
  • Confusing predictions and observations.
  • Forgetting that log-scale parameters need back-transformation.
  • Skipping fit inspection.
  • Assuming convergence means the model is adequate.

Practice Problems

  1. What is the difference between running fit and print(fit) in this lesson?

  2. What types of information are stored inside fit?

  3. Run:

print(fit)

Identify:

  • one uncertainty metric
  • one variability metric
  • one convergence message
  1. Extract fixed effects.
coef(fit)$fixed %>%
enframe(
  name = "parameter",
  value = "estimate"
)

Then back-transform them.

coef(fit)$fixed %>%
exp() %>%
enframe(
  name = "parameter",
  value = "estimate_original_scale"
)

Why is the second table easier to interpret biologically?

  1. Inspect prediction variables.
fit_tbl %>%
select(
  DV,
  PRED,
  IPRED,
  RES,
  CWRES
) %>%
head()

Explain in words how DV, PRED, IPRED, RES, and CWRES differ.

Problem 1

Running:

fit

renders a visual model representation in Quarto.

This is useful for seeing:

  • model equations
  • parameter relationships
  • residual error structure

Running:

print(fit)

prints the full fit summary.

This is useful for seeing:

  • objective function
  • information criteria
  • parameter estimates
  • uncertainty metrics
  • variability estimates
  • convergence information

Problem 2

fit stores more than parameter estimates.

Examples include:

  • model structure
  • fixed effects
  • variability estimates
  • predictions
  • residual quantities
  • estimation metadata

The fit object becomes the central object for later analysis.

Problem 3

In the printed summary, examples include:

SE
↓
parameter uncertainty
%RSE
↓
relative parameter uncertainty
BSV(CV%)
↓
subject-to-subject variability
relative convergence
↓
optimization status

The goal is to learn where information appears, not to memorize every line.

Problem 4

The first table shows estimates on the model scale.

For example:

tcl
=
log(CL)

The second table uses:

exp()

to return estimates to the original scale.

This is easier to interpret biologically because clearance, volume, and absorption are positive PK parameters.

Problem 5

Example interpretation:

Variable Meaning
DV observed concentration
PRED prediction for the typical subject
IPRED prediction including individual effects
RES observed minus population prediction
CWRES standardized residual used for diagnostics

Conceptually:

DV
Observed Data

PRED
Typical Subject Prediction

IPRED
Subject-Specific Prediction

RES
Raw Disagreement

CWRES
Standardized Diagnostic Residual

These variables become central later when evaluating model behavior.

Summary

  • Estimation returns a rich fit object.
  • fit renders the model representation in Quarto.
  • print(fit) prints the full fit summary.
  • Fit objects contain estimates, uncertainty metrics, predictions, residuals, and metadata.
  • Systematic reading improves interpretation.
  • Use fit to view the model.
  • Use print(fit) to inspect the summary.
  • Extract before interpreting.
  • Back-transform log-scale parameters.
  • Diagnostics come later.
